Description

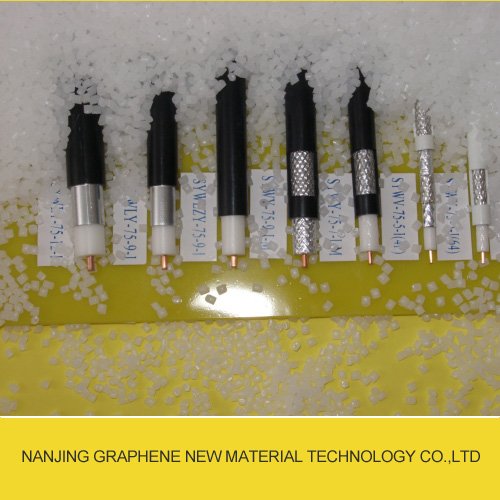

GNM1029 is a new type of physical foaming dielectric raw material, specialized for communication cable diameters from 0.8 to 22 mm. High expansion degree and good electrical properties are its main characteristics.
GNM1029 does not contain a nucleating agent so that a small amount has to be added during the extrusion process.
Properties
Melt index g/10min 5.8 (190℃，2.16KG)
Density g/cm3 0.93
Dielectric constant (1MHz) 2.33
Dissipation Factor (1MHz) 2.0×10-4
Volume resistivity Ω.cm 2.0×1016
GNM1029 Processing Temperature Profile（℃）
ZoneⅠ： 158℃
ZoneⅡ： 178℃
ZoneⅢ： 188℃
ZoneⅣ： 198℃
ZoneⅤ： 195℃
Head： 180℃
Die ： 168℃
The temperature data above are listed only as an operation guideline.Adjustments should be made during producion according to technical perameters such as cable size,construction,melting pressure.
Form: pellets
Package: 25 kg bags
They should be stored in a dry and cool area.
Safety
GNM1029 is not classified as a dangerous preparation and has passed the ROHS directive. It meets the requirements for the Food and Drug Administration regulation.
